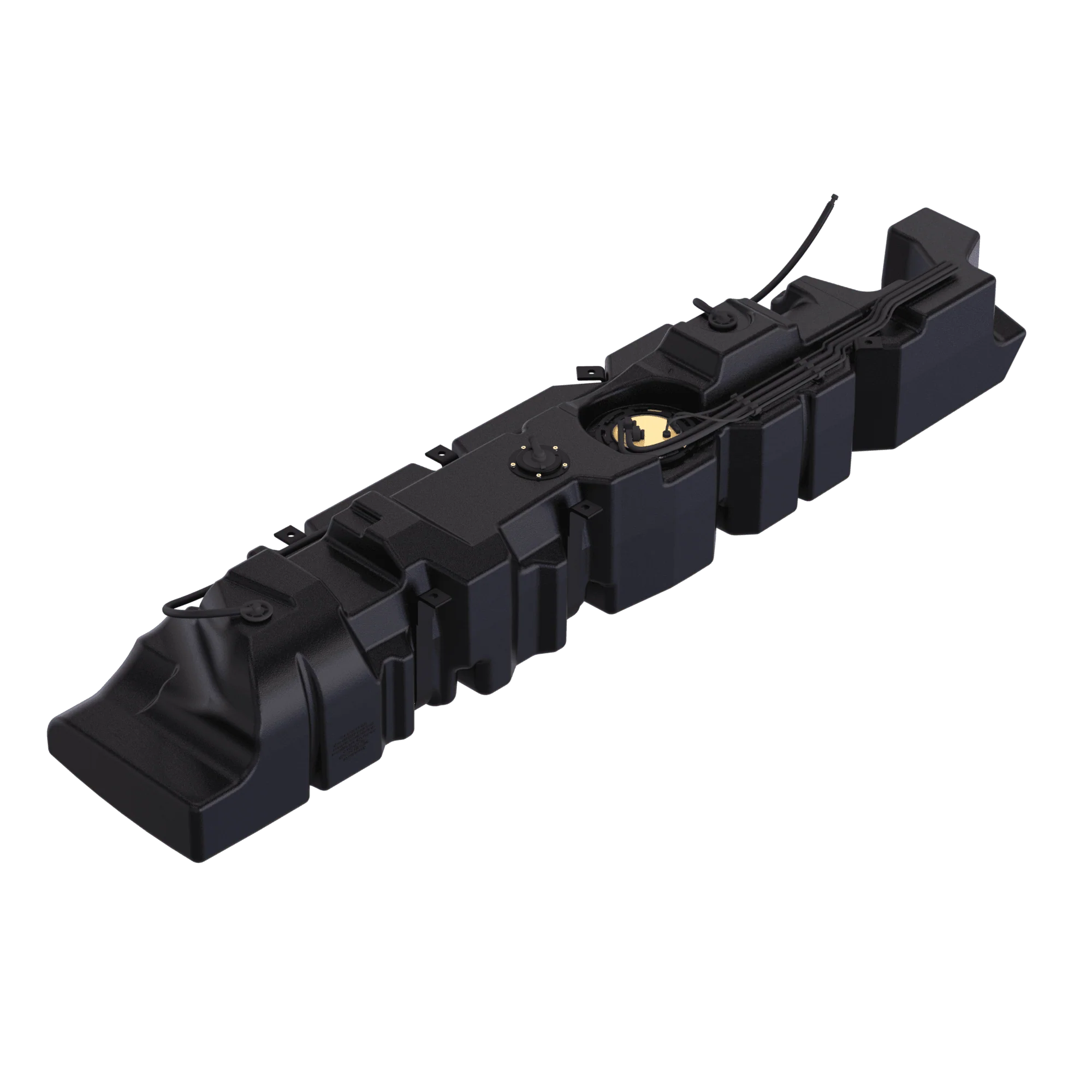

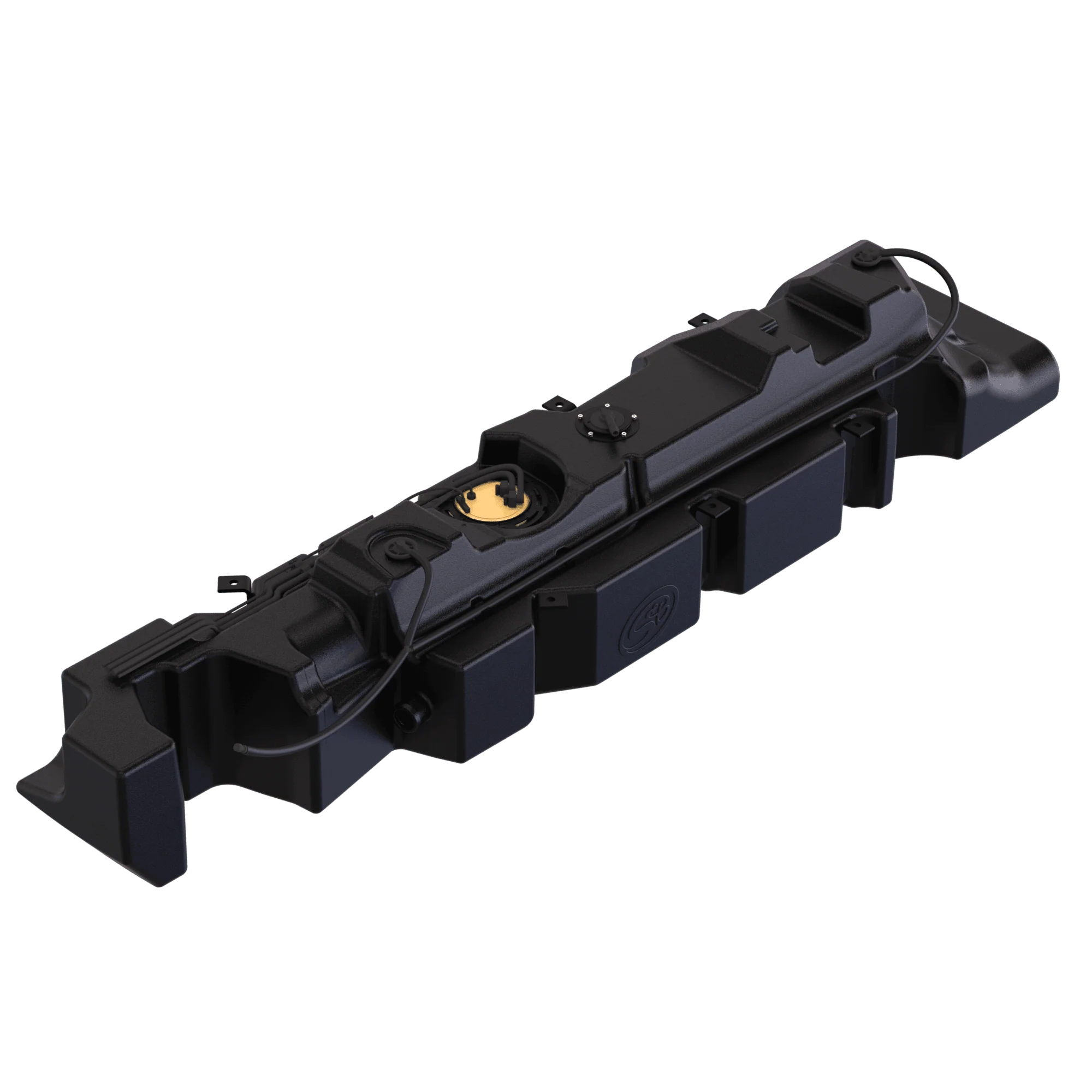

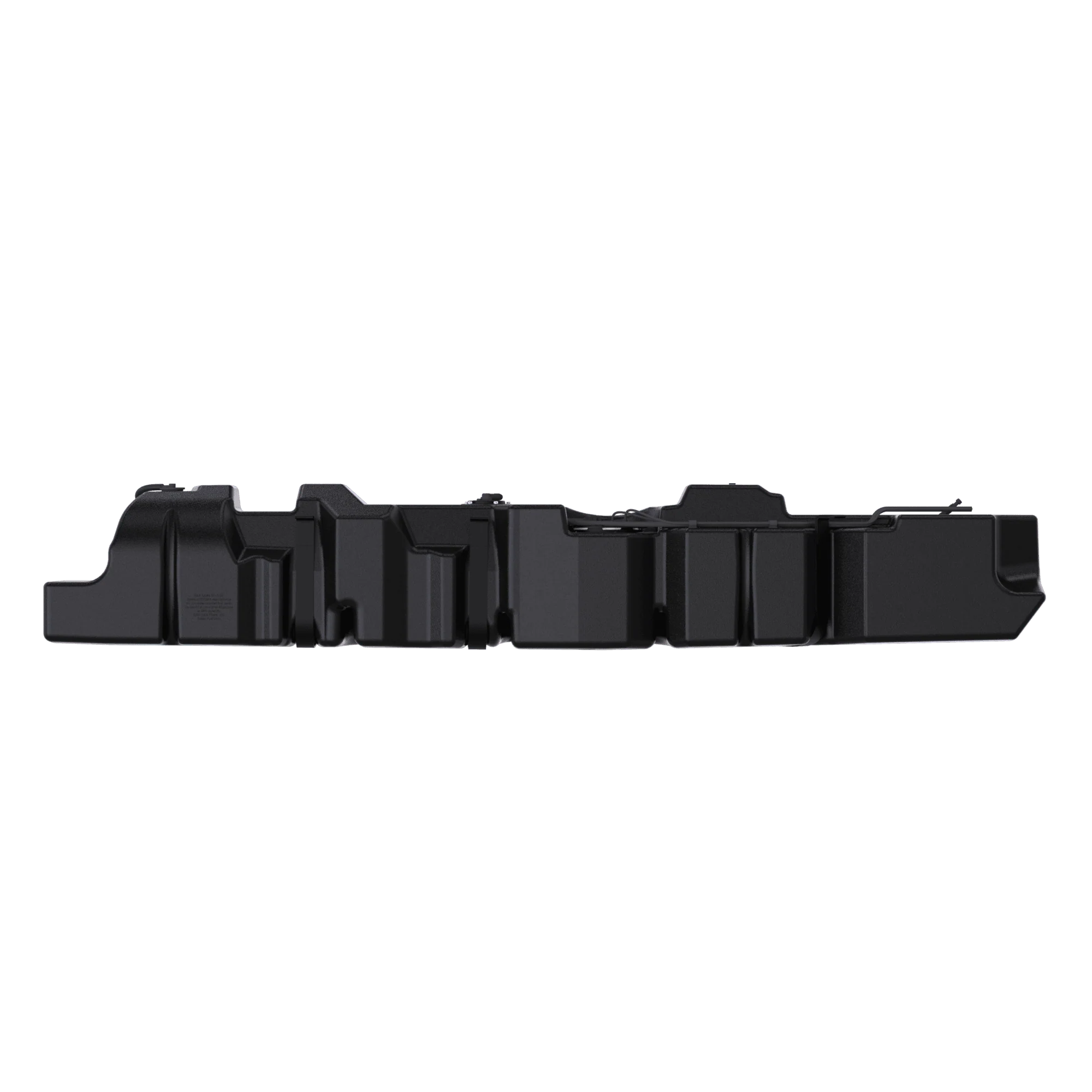

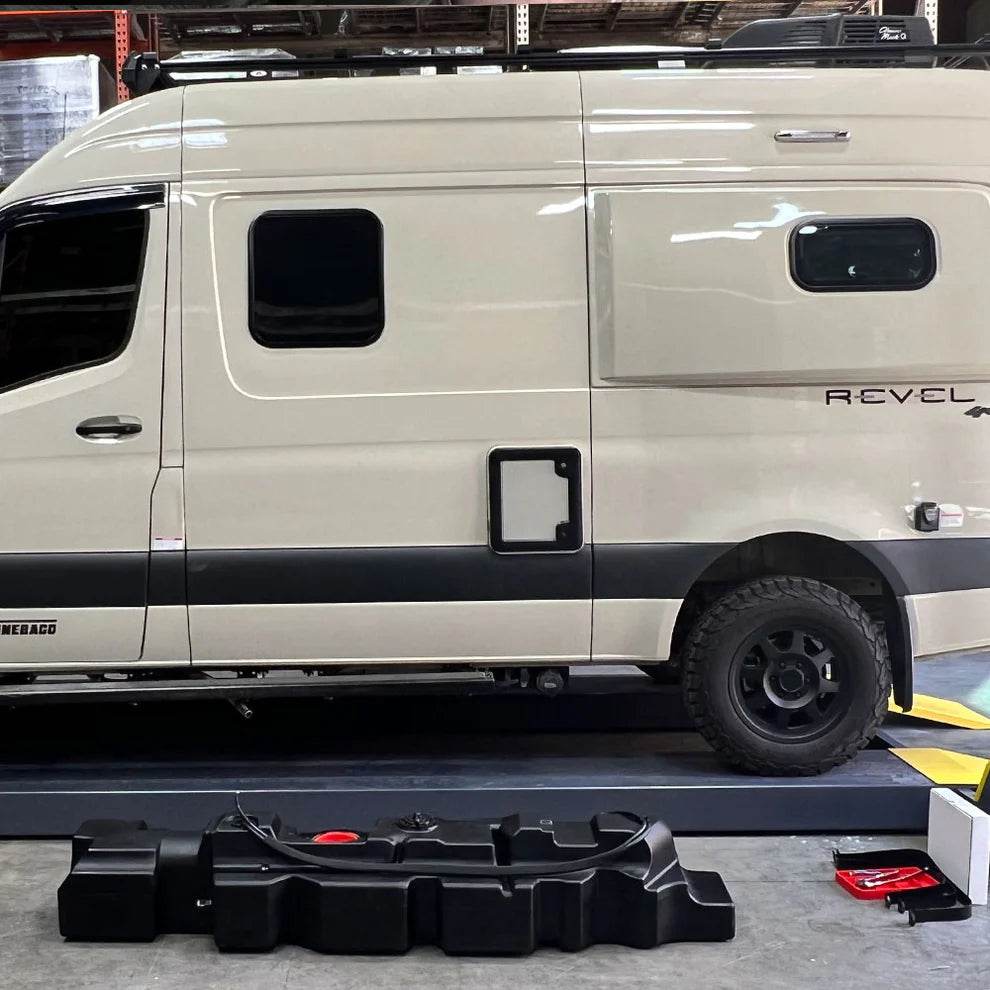

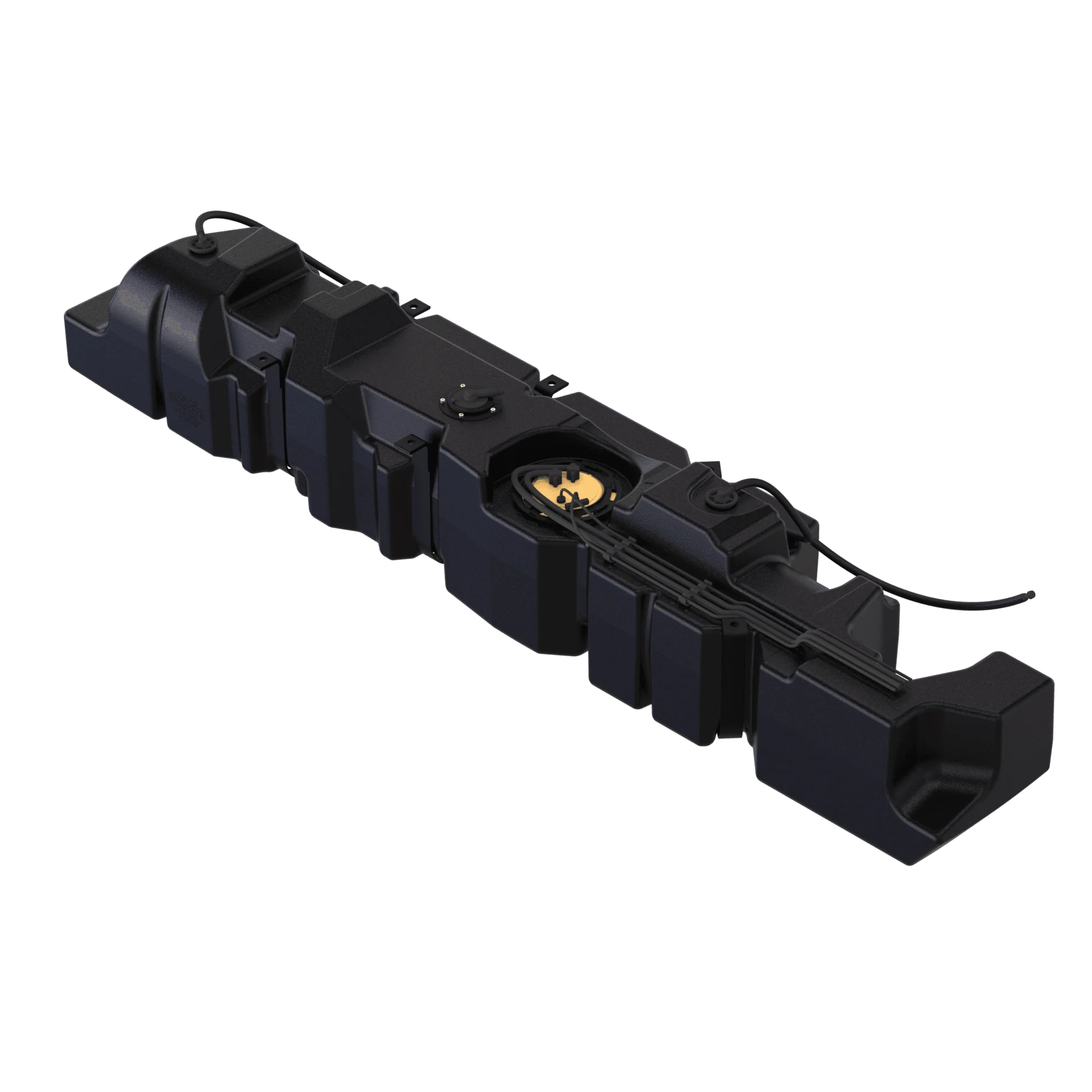

S&B Filters 40 Gallon Replacement Fuel Tank - 2025 WInnebago Revel AWD 170" (10-1032)
The S&B Tank for AWD vans fits 170" Crew, Sanctuary, Tranquility, Entegra Launch, Jayco Terrain, 2025+ Revels and any builds that have plumbing or interference behind the original fuel tank.
When using the auxiliary fuel tap on stock tanks, tap stops pulling fuel around 1/4 tank. With the S&B Tank, it will stop pulling fuel around 1/3-1/2 tank.
Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). All 2020+ Revels should have been built with this option but please confirm by sending us your vin or consulting with your installer.
Note: Will not fit 144" Dually.
Vehicle Fitment
| Year | Make | Model | Engine |
|---|---|---|---|
| 2025 | Winnebago | Revel (AWD Chassis) | 2.0L, Diesel |
| 2023-2025 | Mercedes | Sprinter | 2.0L, Diesel |
| 2024-2025 | Jayco | Terrain | 2.0L, Diesel |
| 2024-2025 | Entegra | Launch | 2.0L, Diesel |
More Details
| Dimensions | 79.91 x 15.94 x 14.18 |
| Drain | No |
| Ground clearance compare to oe tank | 1.5" |
| Oem capacity | 24 Gallons |
| Sending unit | OE |
| Straps included | Yes |
| Sump | No |
| S&B Capacity (Approximate) | 40 Gallons |
| Tank type | Midship |
| Weight dry | 37lbs |
Documents
Product Information
Product Information
Shipping & Returns
Shipping & Returns
S&B Filters 40 Gallon Replacement Fuel Tank - 2025 WInnebago Revel AWD 170" (10-1032)
S&B Filters 40 Gallon Replacement Fuel Tank - 2025 WInnebago Revel AWD 170" (10-1032)
The S&B Tank for AWD vans fits 170" Crew, Sanctuary, Tranquility, Entegra Launch, Jayco Terrain, 2025+ Revels and any builds that have plumbing or interference behind the original fuel tank.
When using the auxiliary fuel tap on stock tanks, tap stops pulling fuel around 1/4 tank. With the S&B Tank, it will stop pulling fuel around 1/3-1/2 tank.
Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). All 2020+ Revels should have been built with this option but please confirm by sending us your vin or consulting with your installer.
Note: Will not fit 144" Dually.
Vehicle Fitment
| Year | Make | Model | Engine |
|---|---|---|---|
| 2025 | Winnebago | Revel (AWD Chassis) | 2.0L, Diesel |
| 2023-2025 | Mercedes | Sprinter | 2.0L, Diesel |
| 2024-2025 | Jayco | Terrain | 2.0L, Diesel |
| 2024-2025 | Entegra | Launch | 2.0L, Diesel |
More Details
| Dimensions | 79.91 x 15.94 x 14.18 |
| Drain | No |
| Ground clearance compare to oe tank | 1.5" |
| Oem capacity | 24 Gallons |
| Sending unit | OE |
| Straps included | Yes |
| Sump | No |
| S&B Capacity (Approximate) | 40 Gallons |
| Tank type | Midship |
| Weight dry | 37lbs |
