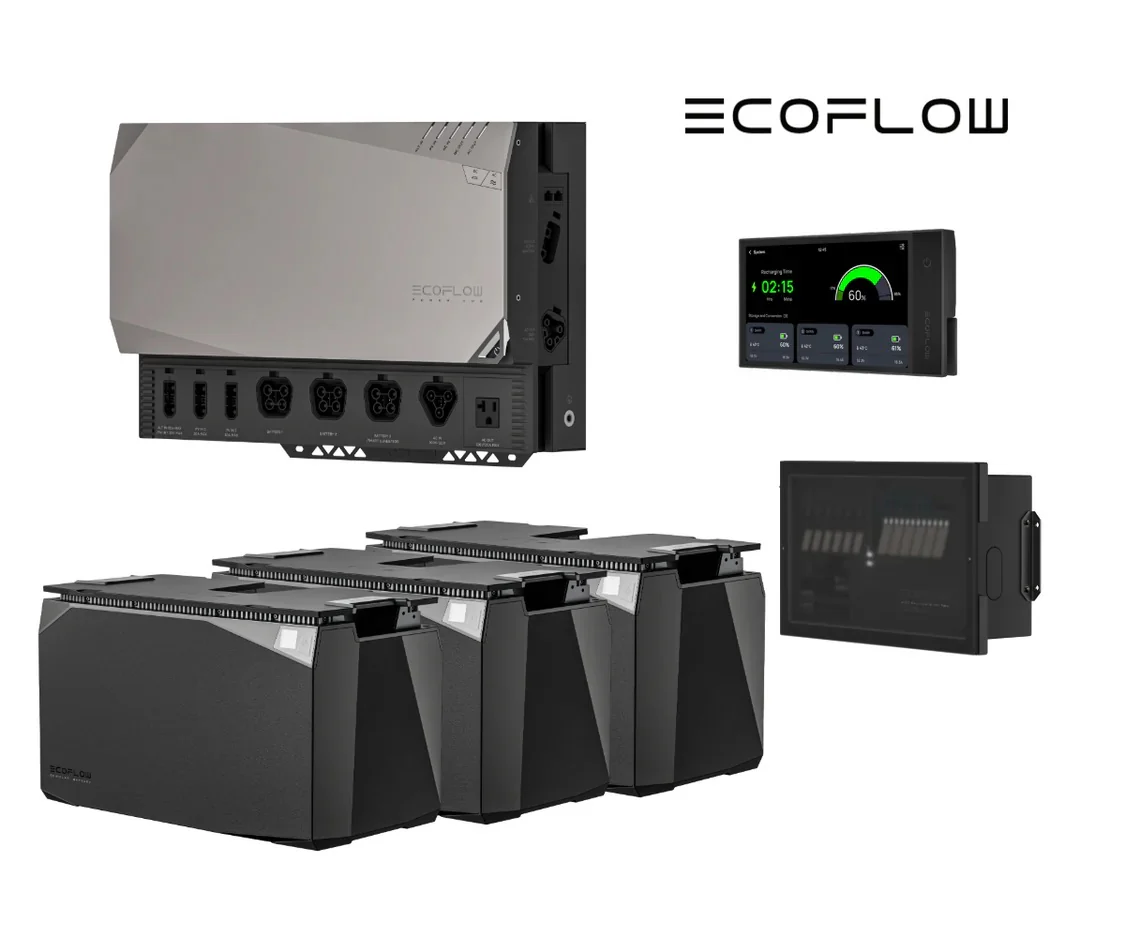

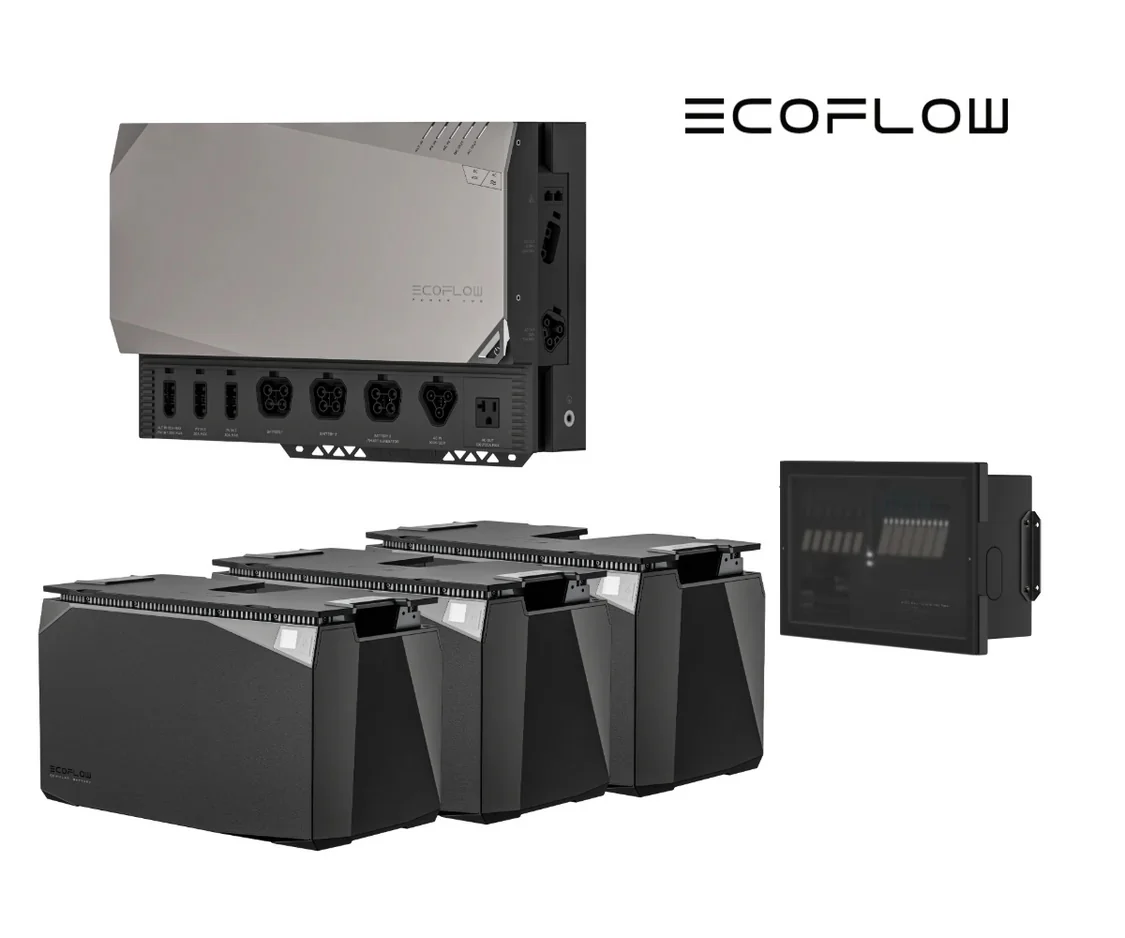

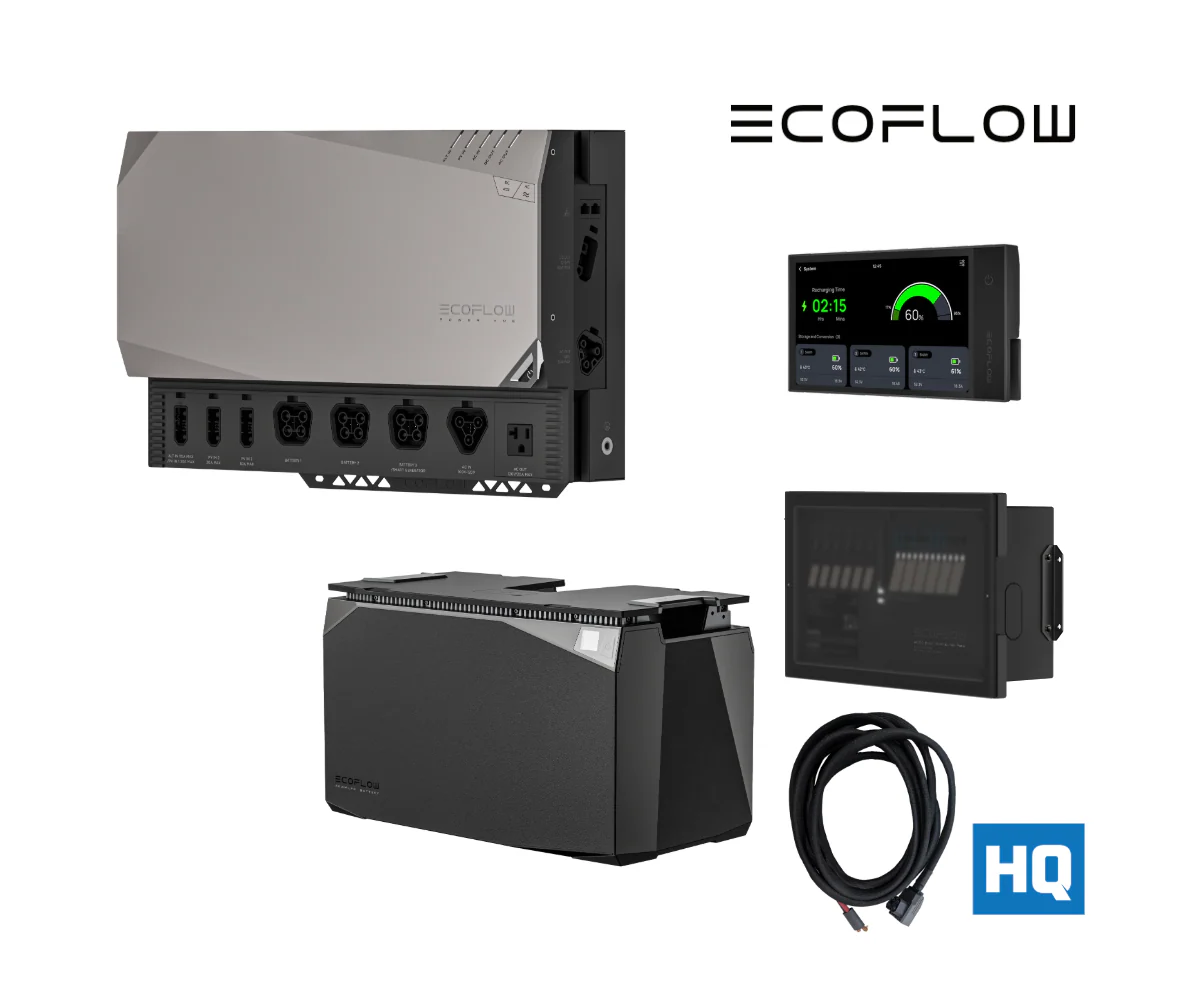

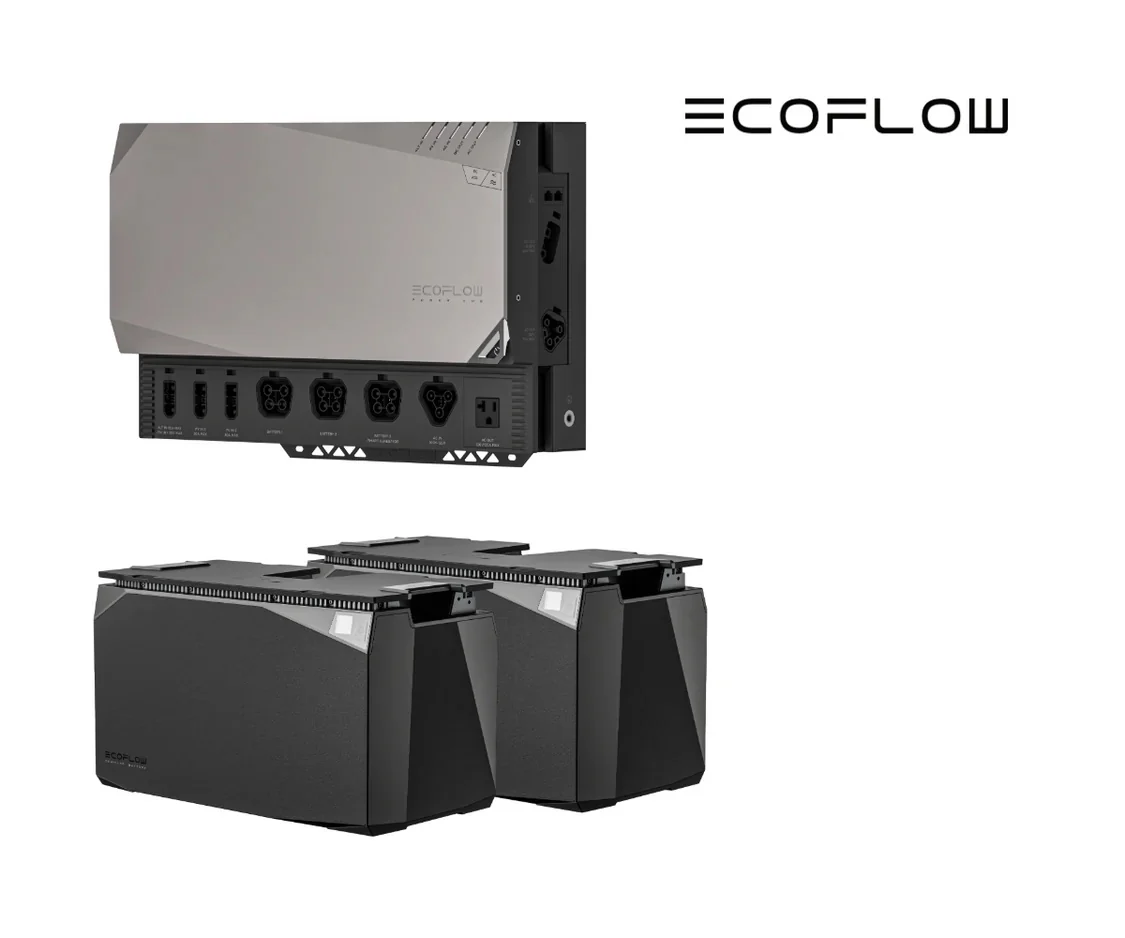

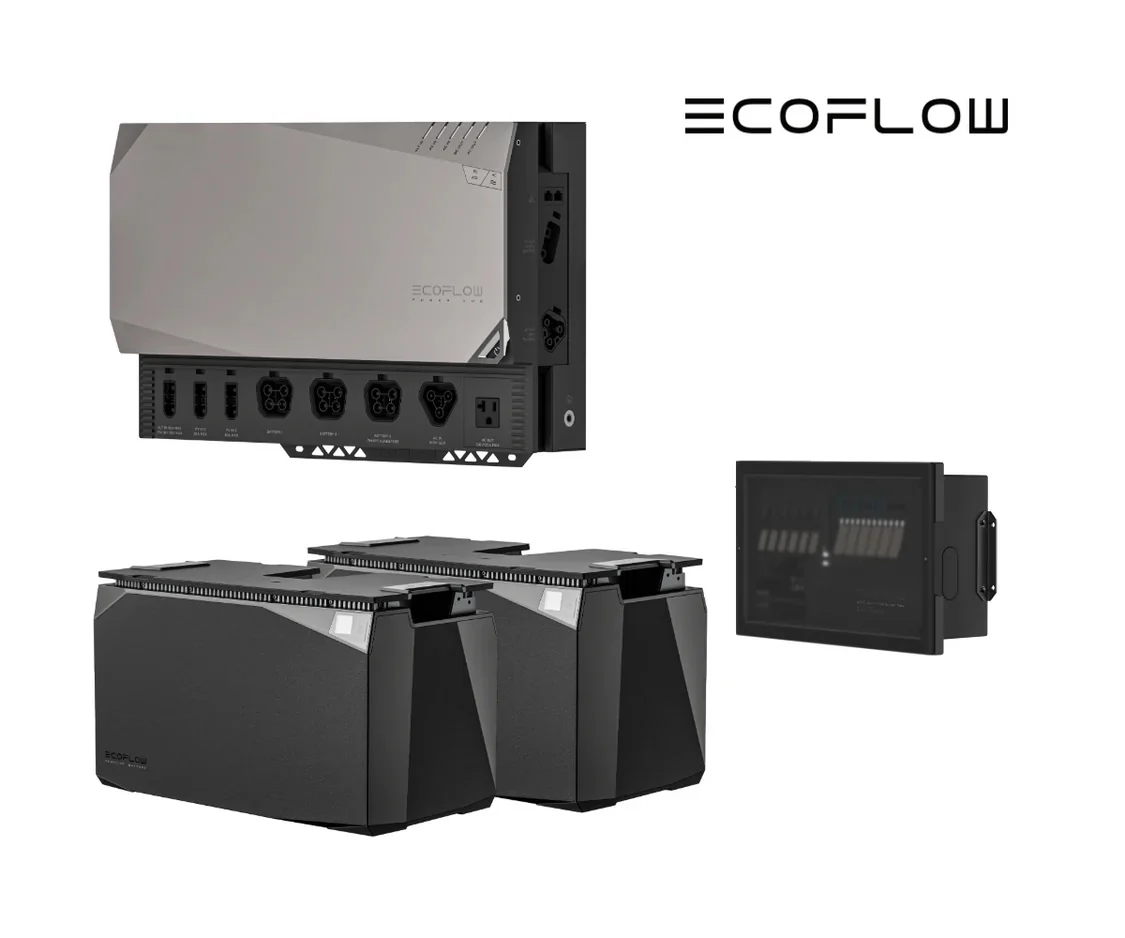

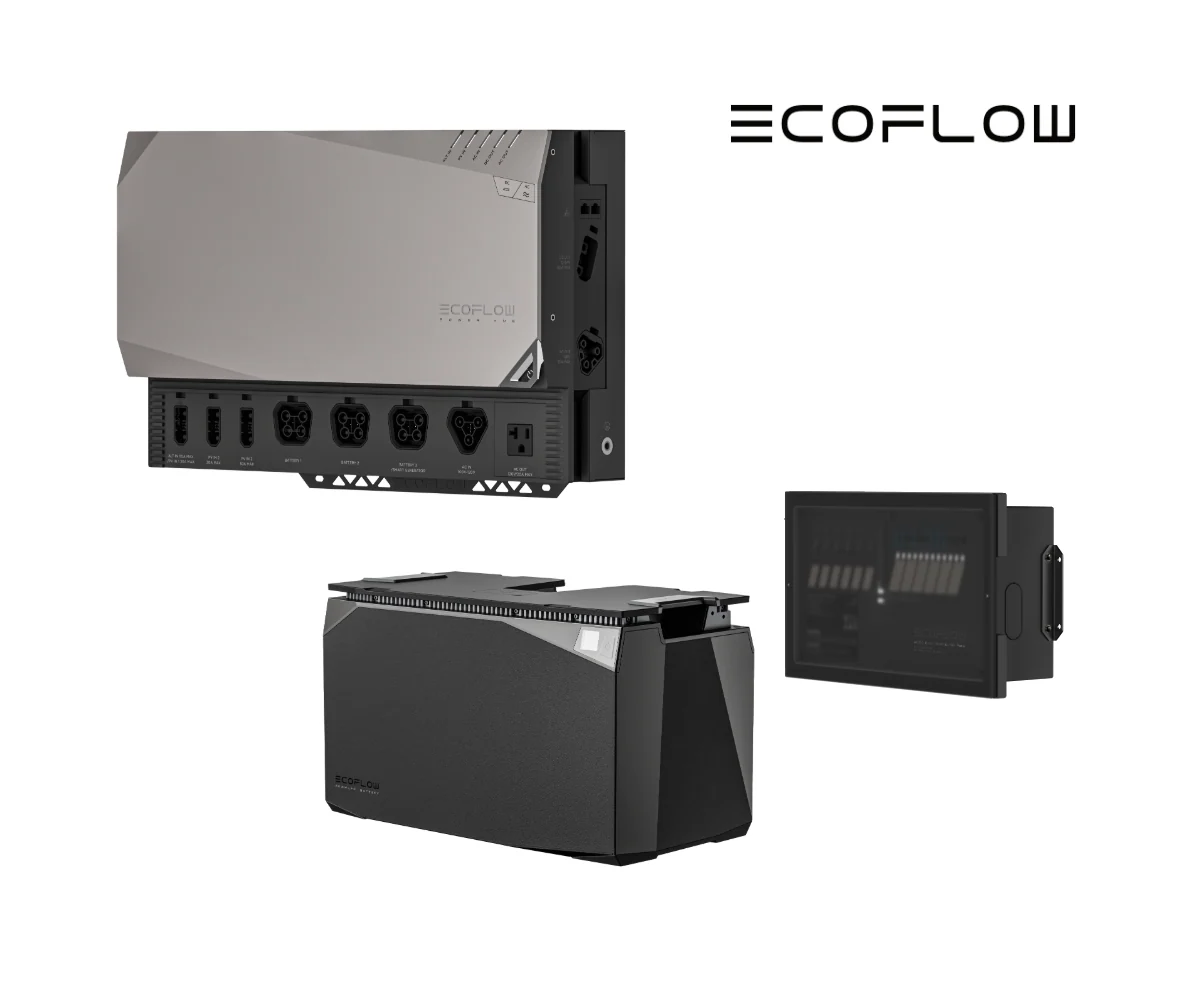

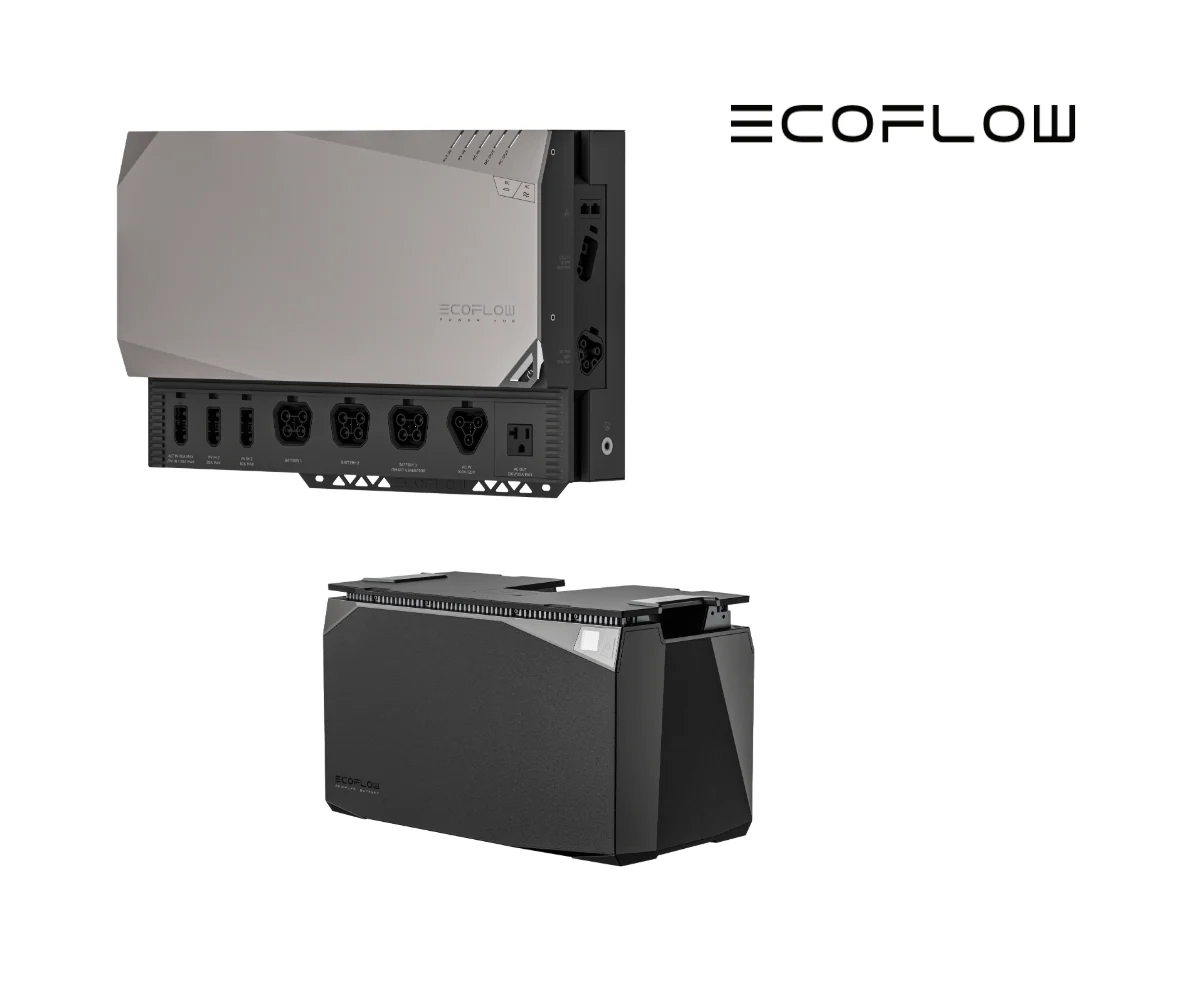

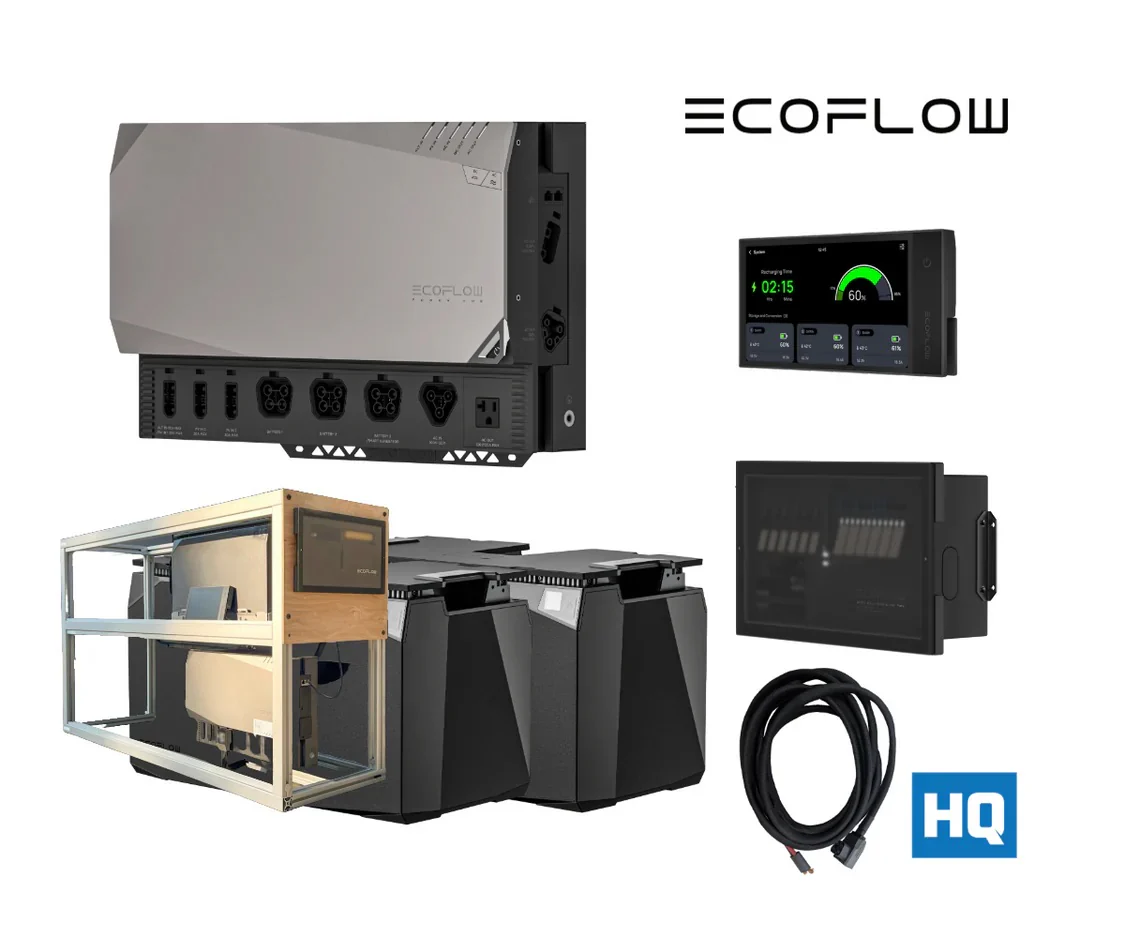

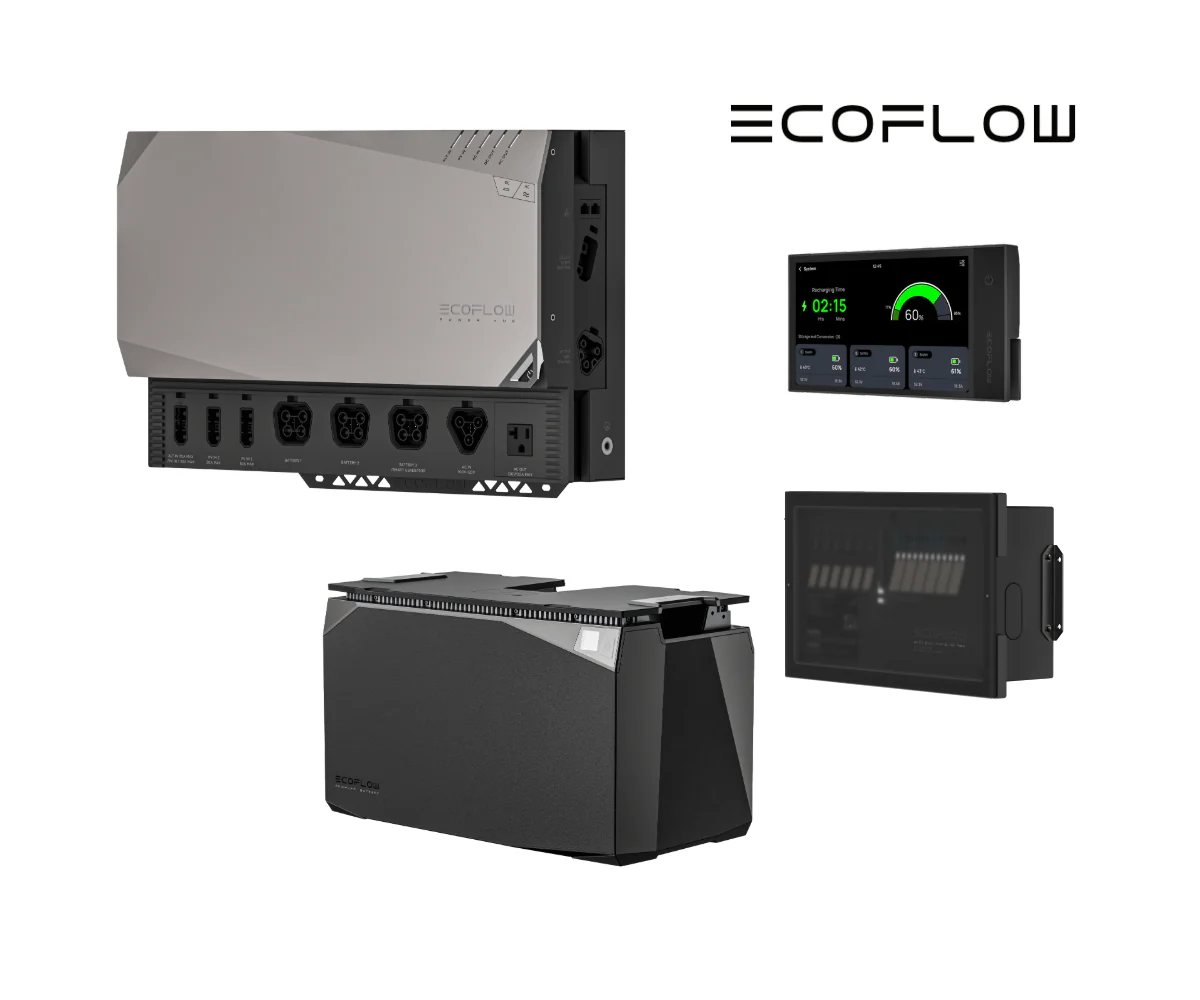

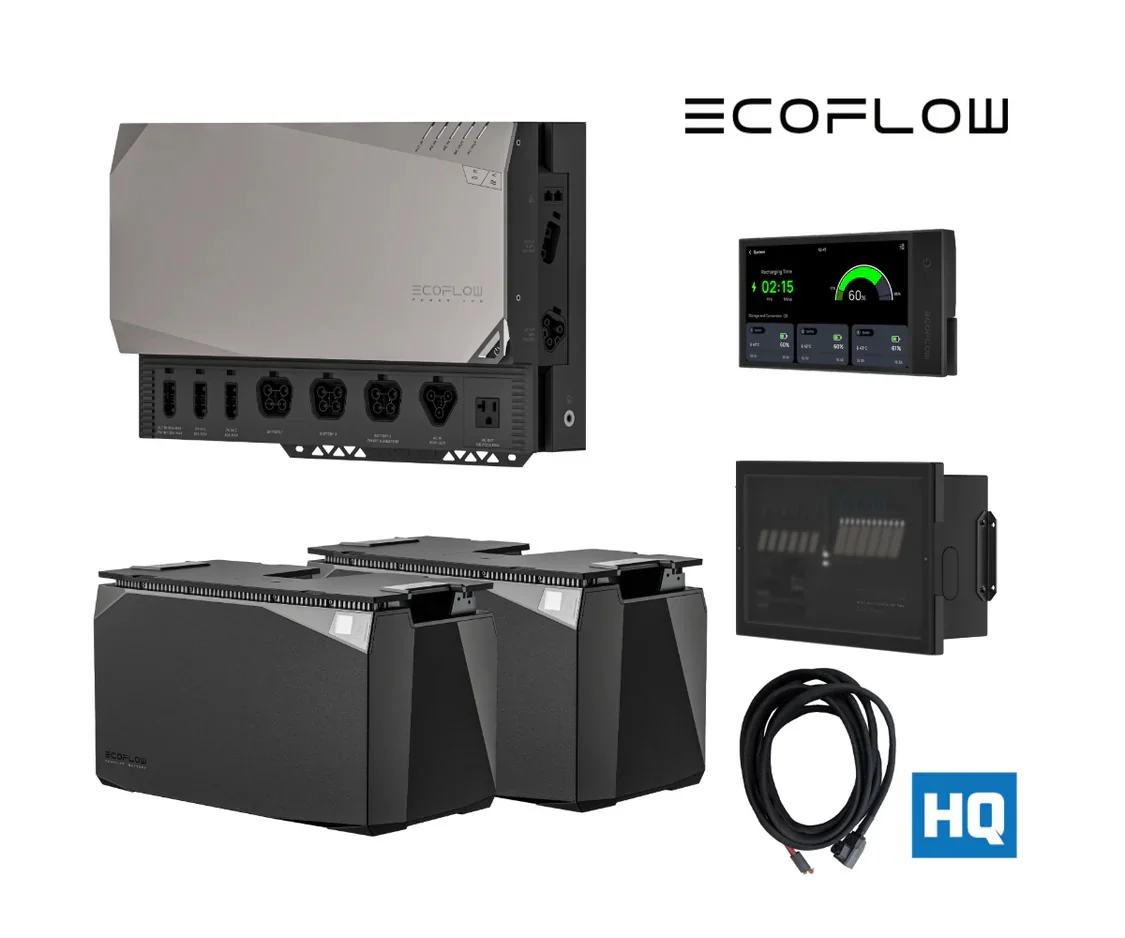

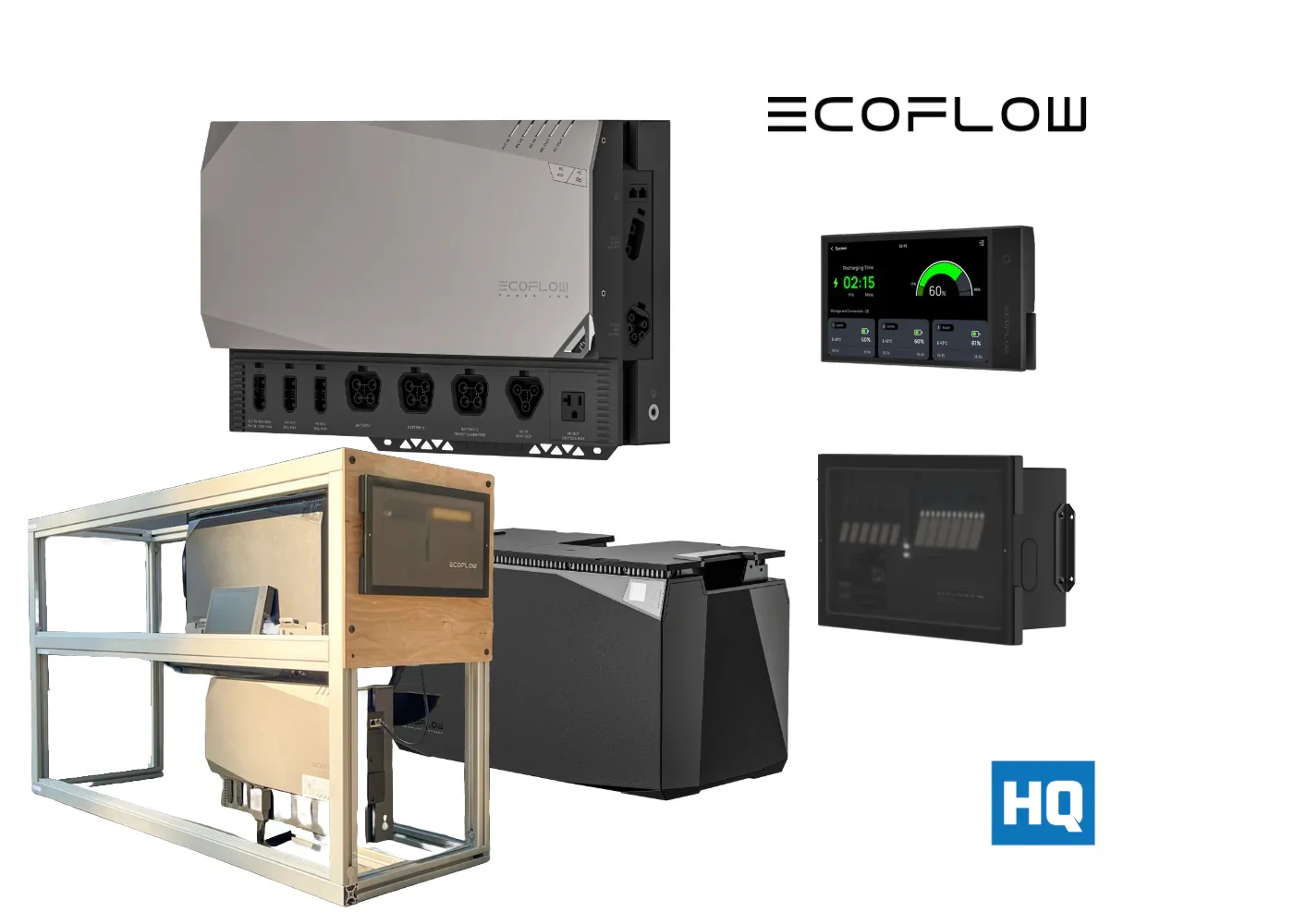

EcoFlow 3.6 kW Power Kits
3.6 kW Power Hub - Gen 1
|
Brand |
EcoFlow |
|
Type |
3.6 kW Power Hub |
|
DC Main Output |
13.6V 70A or 26.4V 60A |
|
AC Main Output |
100V~120V 50Hz or 60Hz, 3600W (7200W Peak) (3000W @ Battery Voltage < 50V) |
|
Auxiliary AC Outlet |
100V~120V 20A |
|
Total Input Power |
Max. 6000W |
|
AC Input Power |
100V~120V Max.30A, Max. 3000W |
|
Alternator Input Power |
Port 1: 13V~60V 60A, Max. 1600W Port 2 & 3: 13~60V 30A, Max. 1600W Each |
|
Solar Input Power |
Port 1 & 2 & 3: 15V~60V 30A, Max. 1600W Each |
|
Dimension (HxWxD) |
11.8 in X 18.9 in X 5.5 in |
|
Operating Temperature |
-13°F to 140°F |
|
Net Weight |
31 lbs |
|
Certificate & Standard |
CE, UL, FCC, UKCA, E-Mark, RCM, TELEC, KCC, ICES, EMC Class A |
|
Warranty |
5 Years |
5kWh LFP Battery
| Battery Capacity | 5120Wh(100Ah)) |
| Battery Type | Lithium-ion |
| Nominal Voltage | 51.2V |
| Configuration | 16S1P |
| Charging Cut-off Voltage | 57.6V |
| Discharging Cut-off Voltage | 40V |
| Max Continued Charging Current | 80A |
| Max Continued Discharge current | 100A |
| Cycle life | 3,500 cycles to 80% capacity |
| Dimensions | 19.7 x 10.2 x 11.8 in |
| Weight | Approx. 89.5 lbs |
30A AC/DC Distribution Panel - Gen 1
| Brand | EcoFlow |
| Type | AC/DC Distribution Panel |
| DC Main Output | 10-30V, Max. 70A |
| AC Main Output | 100V~120V, Max. 30A |
| DC Output | 6 x Controllable Circuits + 6 Regular Circuits, 10-30V, Max. 20A Each Circuit |
| AC Output | 6 x Circuits (1/2: 30A, 3/4/5/6: 20A), 100V~120V |
| Dimension (HxWxD) | 8.3 in x 14 in x 3.9 in |
| Operating Temperature | -13°F to 140°F |
| Net Weight | 5.7 lbs |
| Certificate & Standard | CE, UL, FCC, UKCA, E-Mark, RCM, TELEC, KCC, ICES, ip21, EMC Class B |
| Warranty | 5 Years |
Power Kit Console
| Brand | EcoFlow |
| Type | Power Kit Console |
| Screen | 7-Inch (Diagonal) IPS Touch Screen |
| Communication | RJ45 CAN |
| Control Power Kits System |
ON/OFF via Console’s Power Switch |
| Dimension (HxWxD) | 4.5 in x 8 in x 0.9 in |
| Operating Temperature | -13°F to 113°F |
| Net Weight | 1 lbs |
| Certificate & Standard | CE, UL, FCC, UKCA, E-Mark, RCM, TELEC, KCC, ICES, EMC Class B |
| Warranty | 5 Years |
