Introducing the Northwest Conversions 11 Gallon Sprinter Undercarriage Water Tank SP-UC-11, the ultimate solution for maximizing space and ensuring a reliable water supply on your adventures!

The 11-gallon Sprinter undercarriage tank is designed to fit under the slider door area. (2) Stainless steel laser cut straps, hardware, and rivnuts are included.

Note: Free Shipping in Continental US!

Key Features: Northwest Conversions 11 Gallon Sprinter Undercarriage Water Tank SP-UC-11

• Fits 2007+ Mercedes Sprinter 144", 170", and 170" EXT model cargo vans

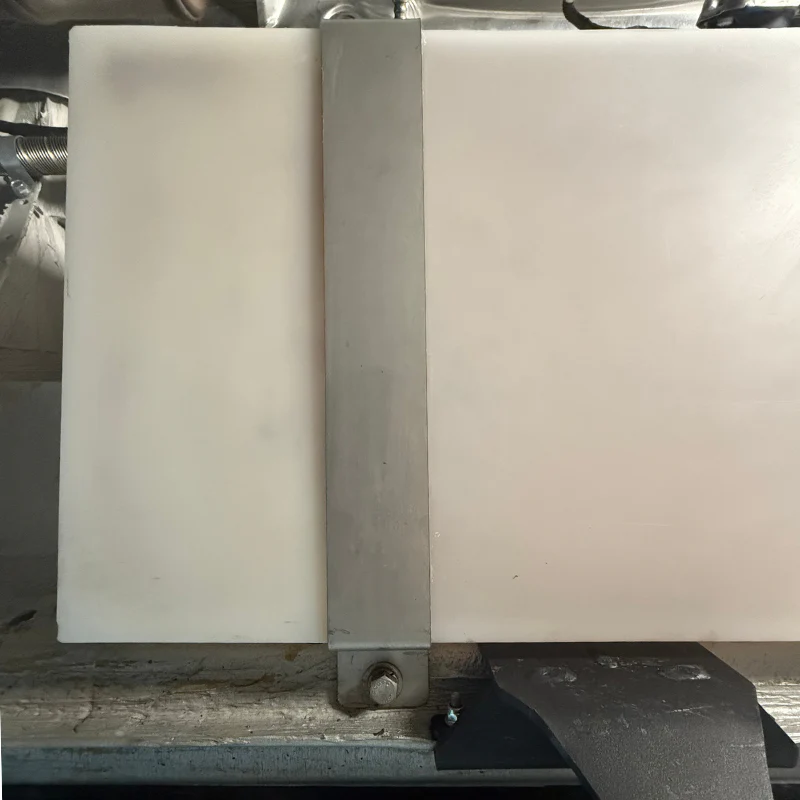

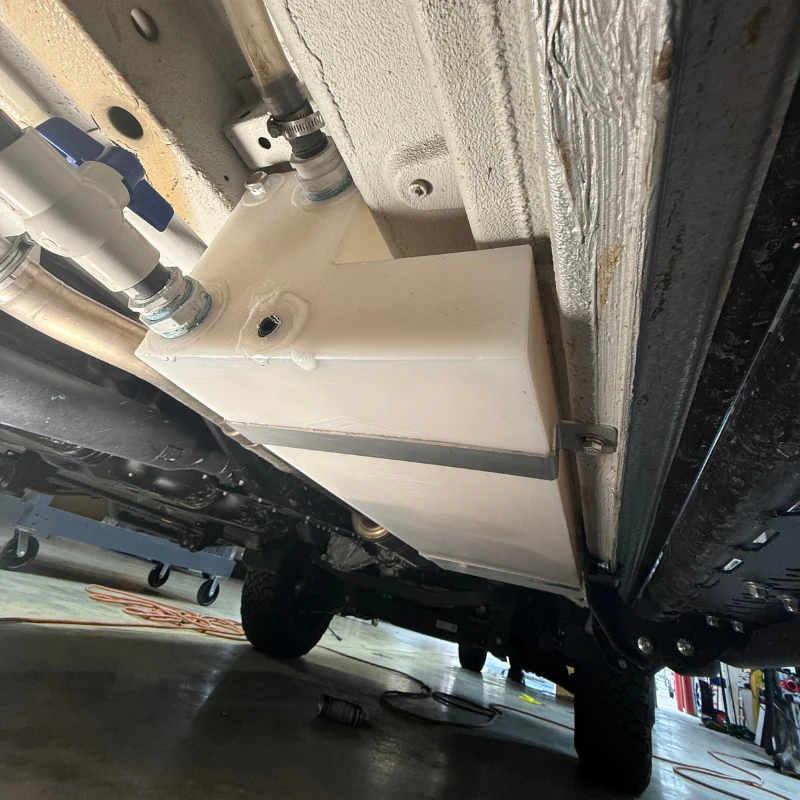

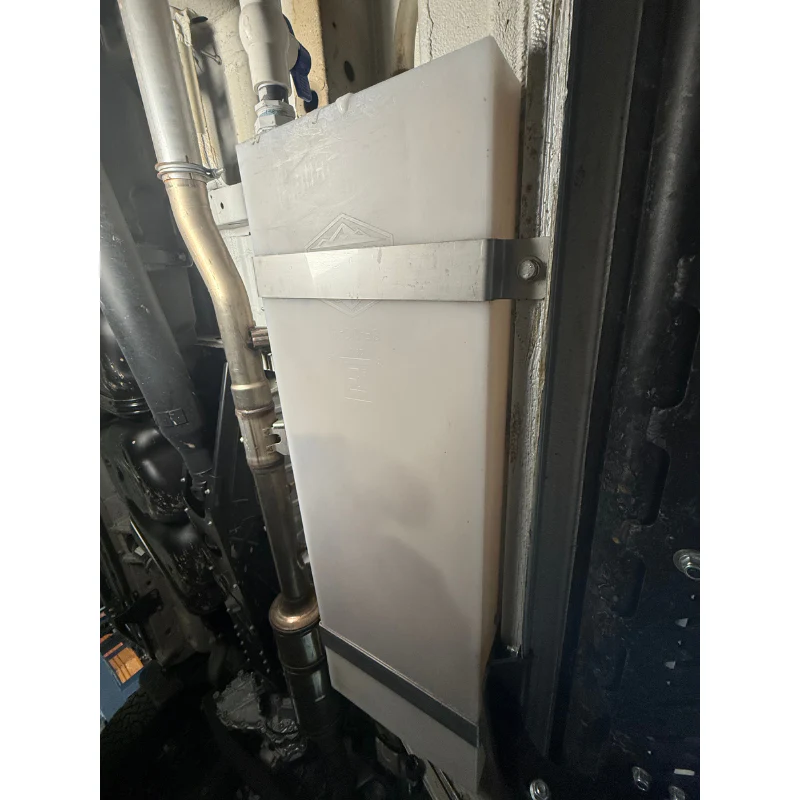

• Fits in the passenger side under slider door step area
• ***Sprinter GAS Engines** Heat Shield (not supplied) from exhaust system should be installed since the exhaust sits closer to the side of the frame on GAS engine Sprinters.
• 11 gallon tank can be used for fresh or grey water
• Tank is designed not to be pressurized (I.e.  Needs to be vented).

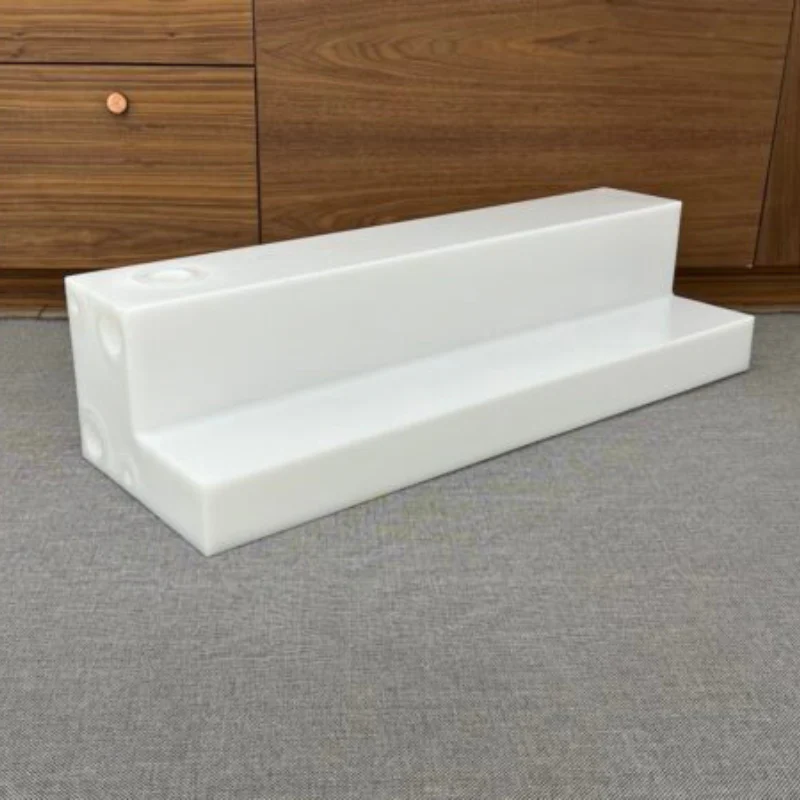

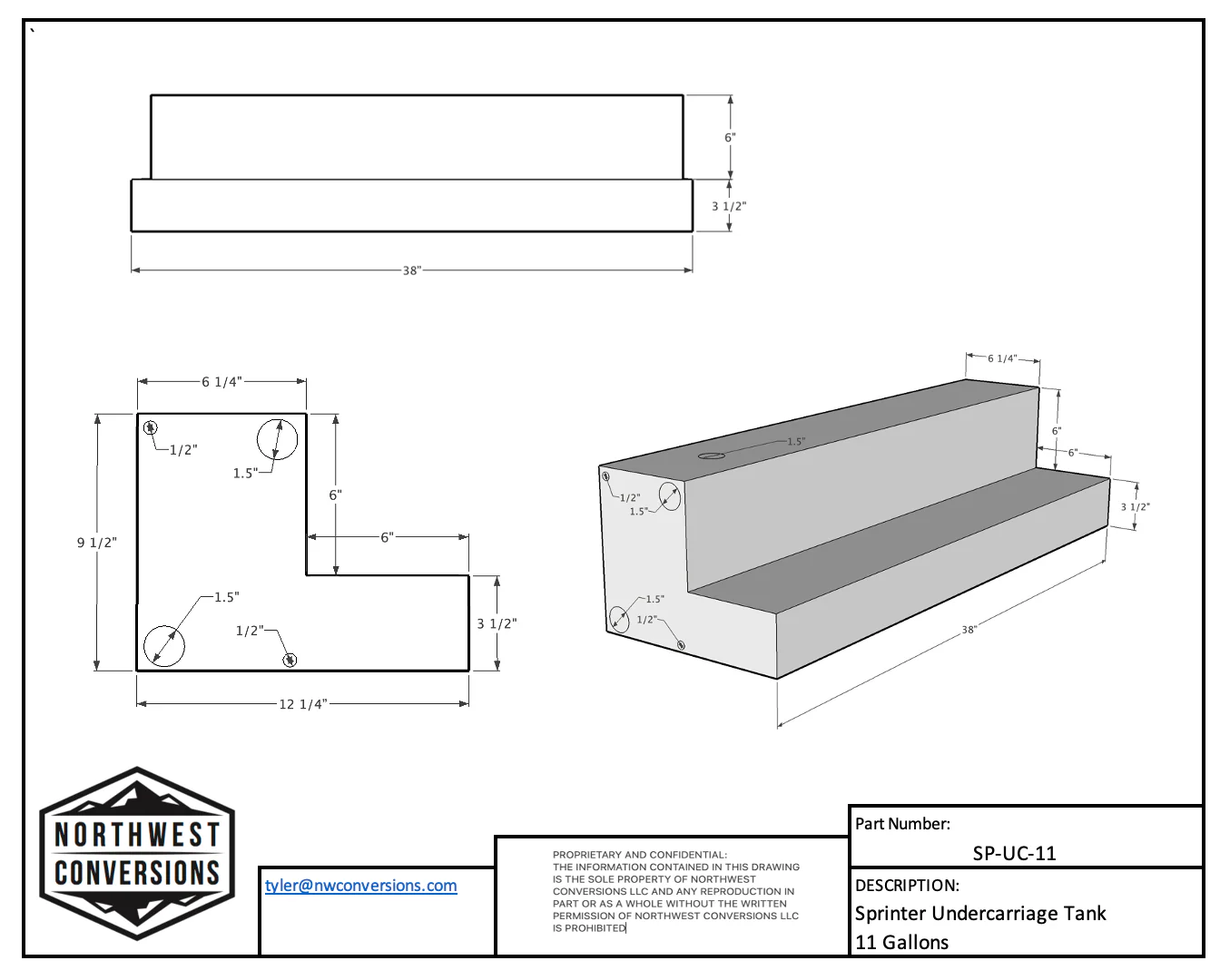

• Overall dimensions: 37.5"L x 9.25"H x 12.25"W.
• BPA Free, food grade plastic.
• Tank has (2) 1.5" NPT port and (2) 1/2" NPT ports on end that will face the rear of van and (1) 1.5" NPT port on top

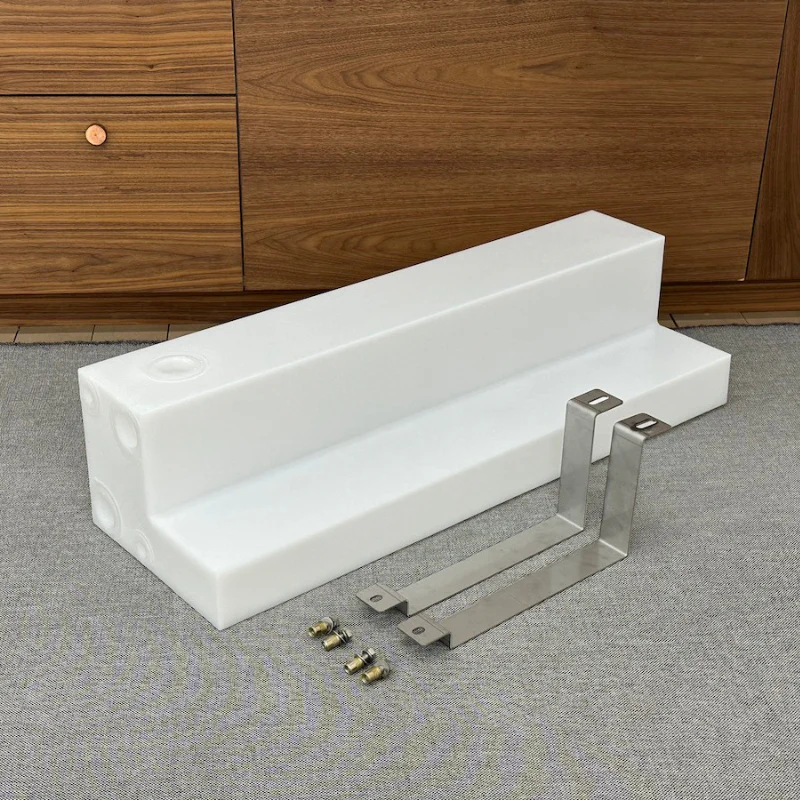

• *(2) Stainless steel Brackets, Stainless steel 3/8" hardware, and 3/8" rivnuts included. (17/32" Drill Bit)
• This will require a rivnut tool. Rivnut tool Not included.
• Fits with AMP Research power step
• Made in USA

***Please allow up to 10 days for processing. ***

Note: Not compatible with aftermarket products in the area the tank will be installed, except AMP Research power step.

Specifications: Northwest Conversions 11 Gallon Sprinter Undercarriage Water Tank SP-UC-11

Weight	20 lbs
Dimensions	38 × 14 × 10 in
